16-Port Gigabit Desktop Switch - DGS-1016S

16-Port Gigabit Desktop Switch - DGS-1016S

Regular price $69.99 CAD
Regular price $69.99 CAD Sale price $69.99 CAD
Sale Sold out
Shipping calculated at checkout.

16-Port Gigabit Desktop Switch

  • 16 Gigabit ports for high-speed wired connections
  • Plug-and-play for effortless installation
  • IEEE 802.3az-compliant to reduce power consumption
  • Auto power reduction when port has little or no traffic
  • Cable-length detection enhances energy conservation
  • Energy-efficient design reduces heat generated and allows silent operation
  • IEEE 802.1p QoS traffic prioritization to optimize performance

Slim Dimensions, Hefty Performance

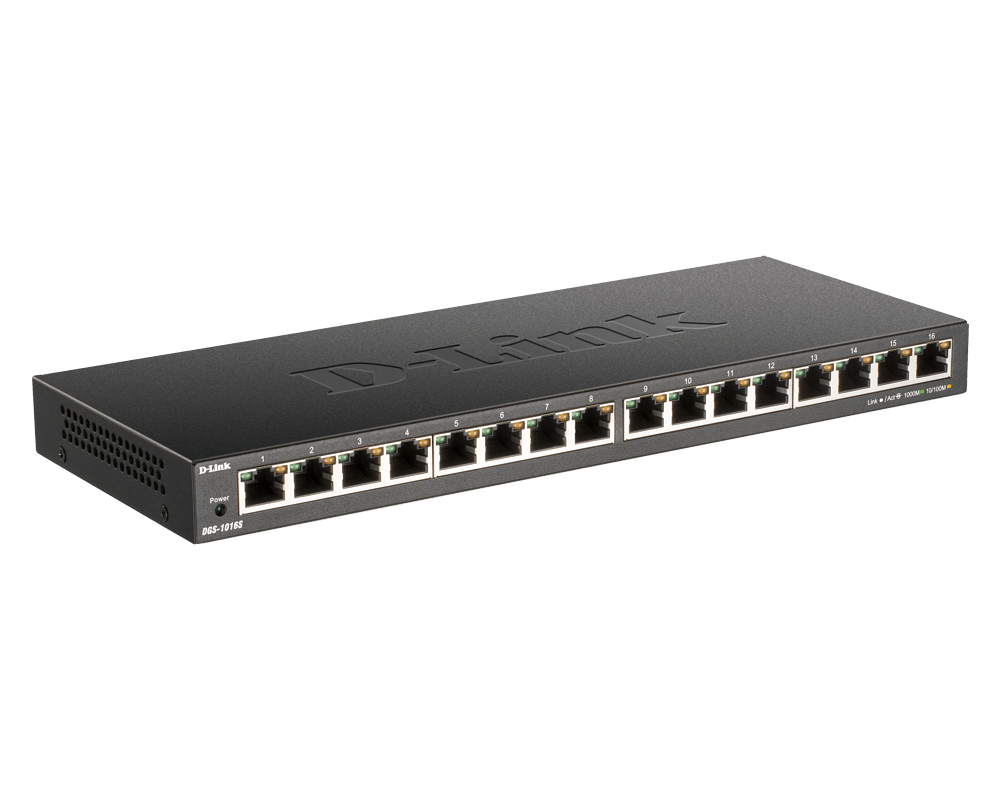

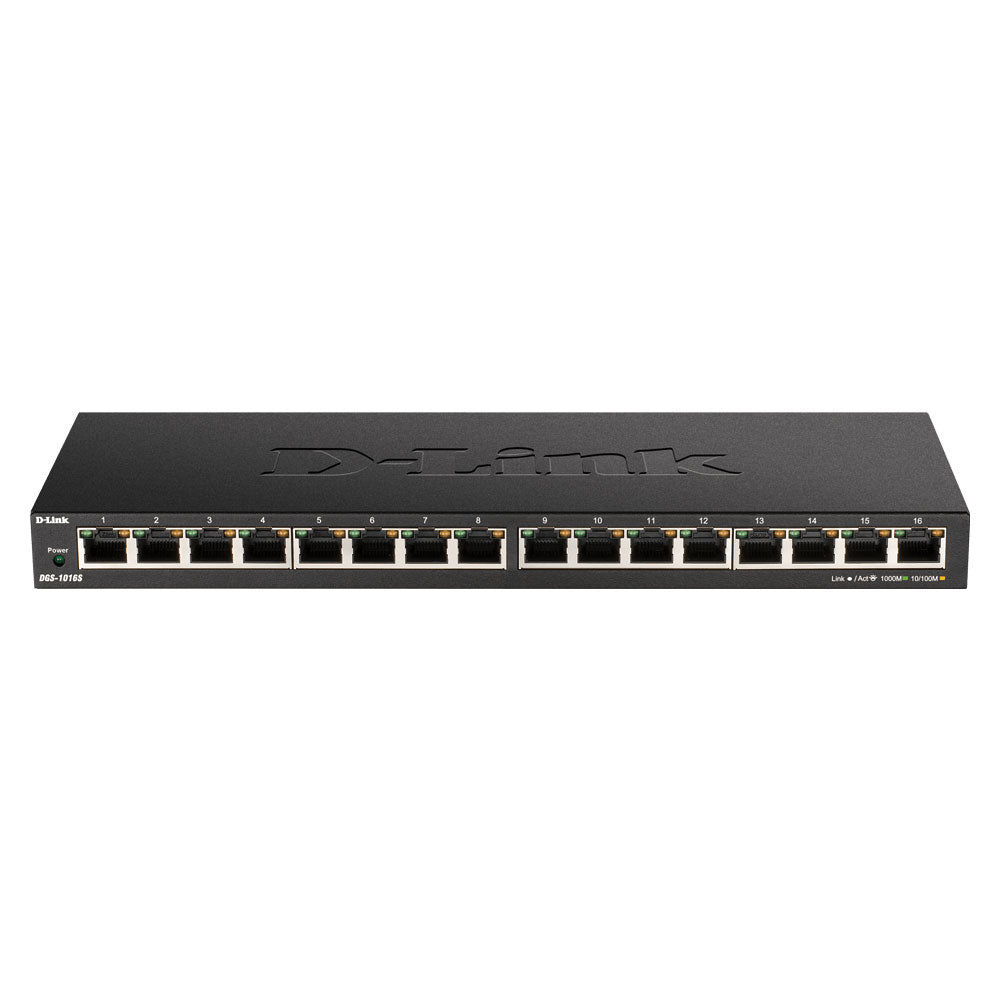

The DGS-1016S 16-Port Gigabit Desktop Switch is ideal for home and small to medium-sized businesses (SMB) to add a quick and easy Gigabit upgrade to the network. Fully IEEE 802.3az-compliant with advanced energy-saving features, the DGS-1016S packs full functionality and Gigabit performance into a slim yet sturdy metal design.

Good for the Planet, Good for your Budget

The eco-friendly DGS-1016S is compliant with Energy-Efficient Ethernet (IEEE 802.3az) standards to save energy and reduce heat emissions without sacrificing performance and functionality. When low-traffic or idle interface ports are detected, the DGS-1016S automatically transitions them into a low-power state, substantially reducing overall device power consumption. Furthermore, the DGS-1016S can determine the approximate length of cables attached to each port to apply just enough power for data transmission on that link, saving even more power while lowering total cost of ownership (TCO).

Soundless Performance

The DGS-1016S features a fanless design for silent operation, reduced energy consumption and enhanced reliability by eliminating a common point of failure.

Prioritize What’s Important with Quality of Service

Quality of Service (QoS) support also enhances your network’s efficiency. QoS cleverly prioritizes network traffic so that time-sensitive data, such as VoIP or surveillance footage, are unaffected even during bursts of high-volume traffic. This allows for an all-round smoother, uninterrupted network experience.


Store Forwarding Yes
Dimension 280 x 110 x 25 mm (11.02 x 4.33 x 0.98 in)
Weight 0.77 kg (1.7 lbs)
Operation Temperature 0 to 40 °C (32 to 104 °F)
Storage Temperature -40 to 70 °C (-40 to 158 °F)
Operation Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Maximum Power Consumption 8.89 W
Standby Power Consumption 3.37 W
Maximum Heat Dissipation 30.32 BTU/h
MTBF 564,658 hours
Power Input 12 V / 1 A
Packet Buffer Size 512 KB
FAN Fanless
Comply with RoHS 6 Yes
Energy Efficiency Ethernet EEE Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
8023x Flow Control Yes
MAC Address Table Size 8K
1000Base-T Interface 16
Switching Capacity 32 Gbps
Max Packet Forwarding Rate 1,488,000 pps per port
Jumbo Frame 9,216 bytes
Number of Queues 8
