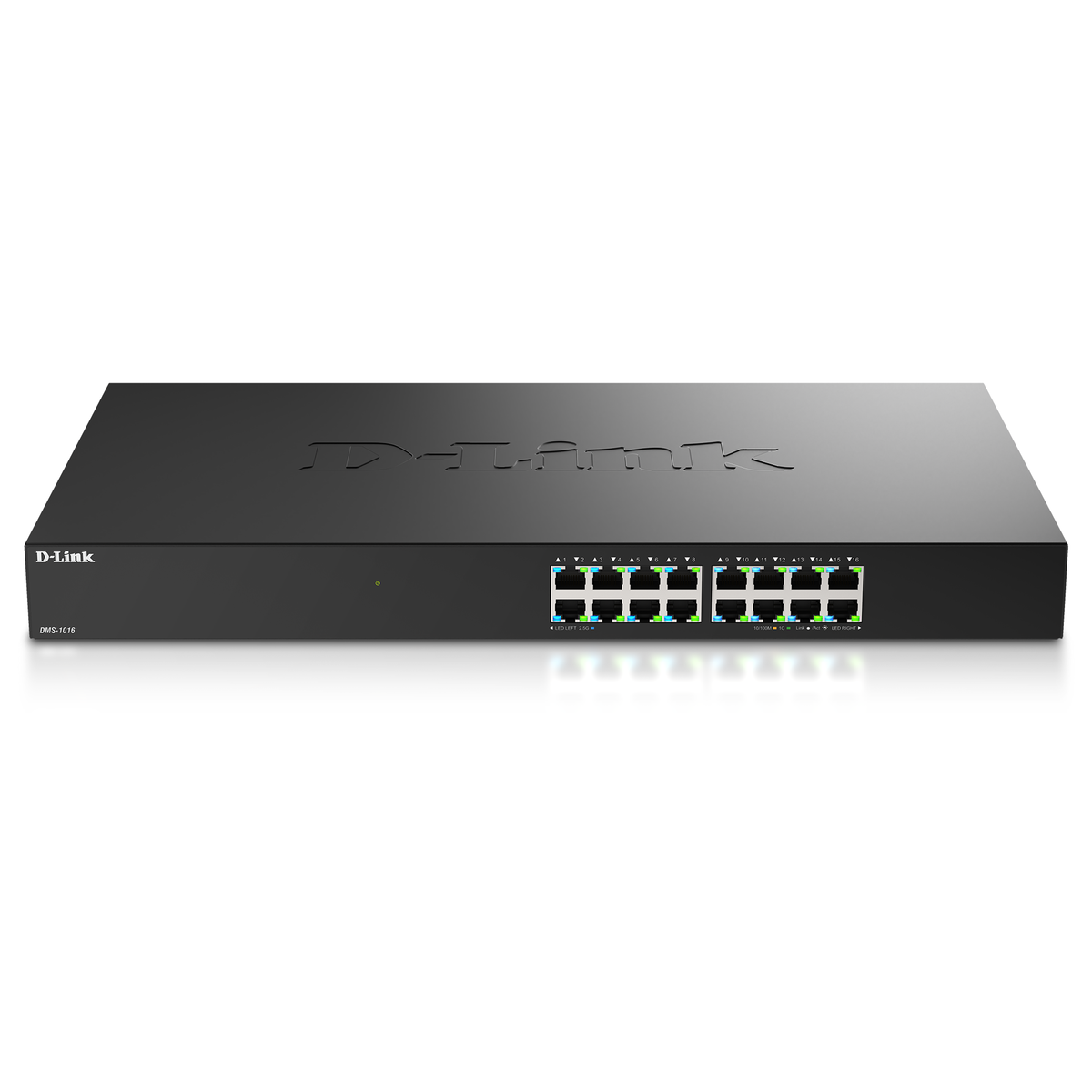

• D-Link DMS-1016 16-port 2.5GbE Multi-Gigabit unmanaged switch with TAA, NDAA and Limited Lifetime Warranty badges
1 14

D-Link

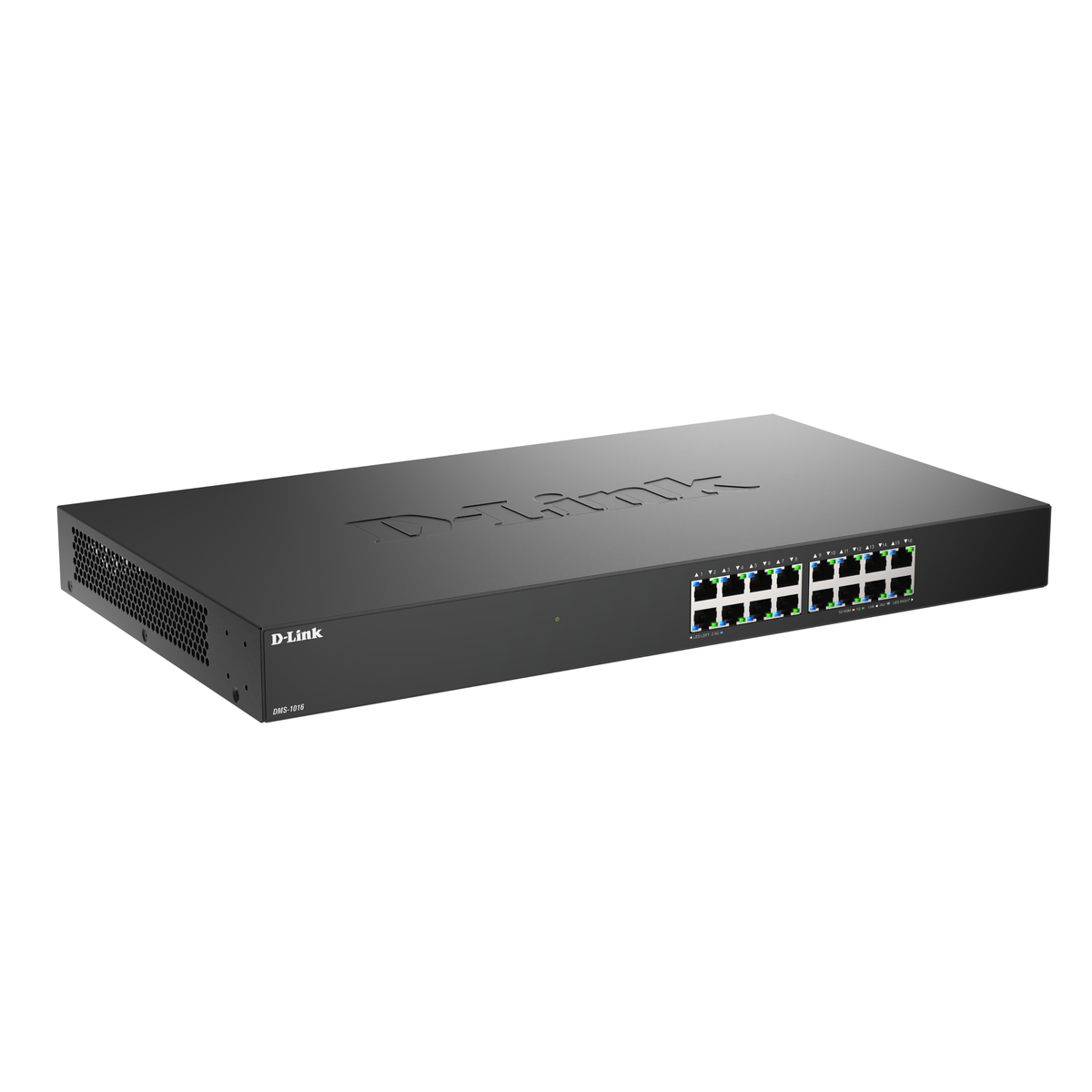

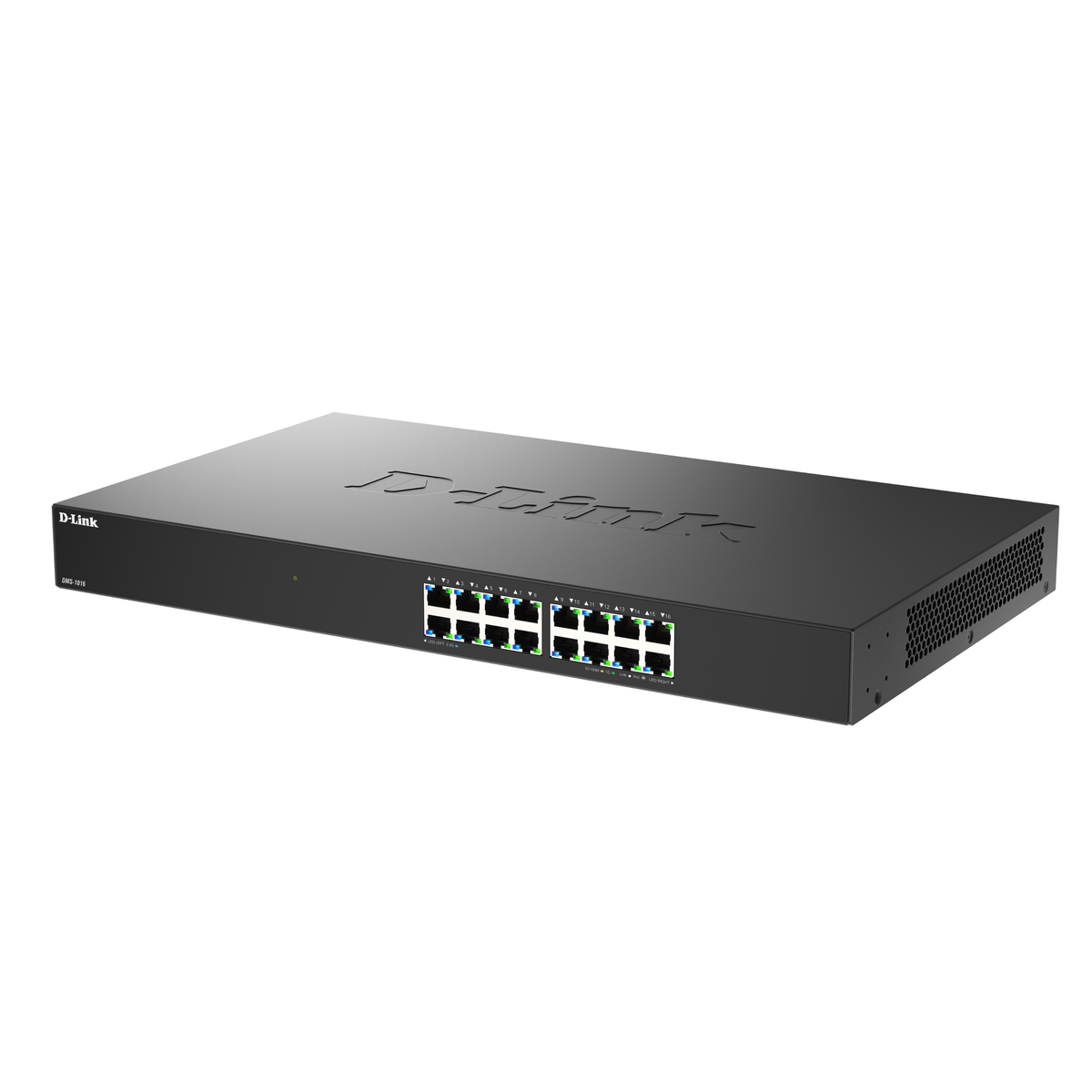

D-Link 16-Port 2.5GbE Multi-Gigabit Unmanaged Ethernet Switch - DMS-1016

D-Link 16-Port 2.5GbE Multi-Gigabit Unmanaged Ethernet Switch - DMS-1016

$499.99 CAD
$499.99 CAD $499.99 CAD
Sale Sold out
Shipping calculated at checkout.

Information on repairability and maintenance for Quebec consumers - Click Here

  • 16-Port 2.5GbE Multi-Gigabit Connectivity: Home and office connections can add up quickly. Connect up to 16 wired devices, including PCs, gaming systems, NAS, access points, NVRs, 4K/8K media devices, servers, and printers, at up to 2.5GbE per port*
  • Great for Multiple High-Bandwidth Connections: Up to 80 Gbps* of aggregate switching capacity helps accommodate simultaneous traffic for file transfers, streaming, gaming, surveillance, and media workflows. Supports Jumbo Frames up to 12,288 bytes for larger data transfers
  • Automatic Multi-Speed Connectivity: Auto-negotiation supports up to 1GbE* and up to 2.5GbE*connections, helping each connected device operate at its supported Ethernet speed
  • Built-In Traffic Optimization, No Configuration Required: IEEE 802.1p QoS, IGMP Snooping, and IEEE 802.3x Flow Control help prioritize traffic, optimize multicast traffic, and manage congestion automatically
  • Plug In and Get Connected: Unmanaged operation and Auto MDI/MDI-X help simplify setup. Just connect your Ethernet devices with no manual software or switch configuration required
  • Quiet Performance for Work and Entertainment Spaces: Durable metal housing and fanless operation help keep noise down for home offices, professional workspaces, studios, AV setups, and network closets
  • Flexible Placement for Different Setups: Compatible with standard 19" rack and AV media cabinet installations, providing flexible deployment options for home, office, studio, and professional network environments*
  • Energy-Efficient Operation: IEEE 802.3az Energy-Efficient Ethernet and link-status detection help reduce power consumption during periods of low network activity
  • NDAA/TAA Sourcing Standards: Follows NDAA/TAA sourcing standards for public-sector and enterprise projects
  • Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty in North America and over 40 years of networking experience

*Theoretical maximum wired connection speed is up to 2.5GbE per port. Actual data throughput, data rates and network performance may vary based on connected devices, cabling, network conditions, configuration, processing overhead, packet size, environment, and other factors. *Third-party mounting accessories sold separately. Verify fit and installation requirements. +Internet service not included with DMS-1016

View full details

D-Link DMS-1016: 16-Port Multi-Gigabit Unmanaged Ethernet Switch

Is Your Home or Office Network Keeping Up with Your Internet Speed?

Today’s faster internet connections and higher-bandwidth devices are changing what home and office networks need to handle- from PCs, gaming systems, and NAS to Wi-Fi access points, surveillance NVRs, 4K/8K media devices, servers, printers, switches, and more. The D-Link DMS-1016 brings them together with 16 Multi-Gigabit Ethernet ports supporting up to 2.5GbE per port*.

With up to 80 Gbps* switching capacity, the D-Link DMS-1016 helps support multiple connected devices and high-bandwidth activity at the same time. Automatic speed negotiation supports both up to 1GbE* and 2.5GbE* connections, so existing Gigabit equipment can stay connected as Multi-Gigabit devices are added.

For North American public-sector and enterprise deployments, the DMS-1016 follows NDAA/TAA sourcing standards.

Great For:

Home & Office • Gaming & Home Labs • AV, Media & Production • Performance-Driven Applications • Wi-Fi Access Points & Surveillance • Business & Education • Retail & Hospitality

*Maximum theoretical wired connection speed is up to 2.5GbE per port. Actual data throughput, data rates and network performance may vary based on connected devices, cabling, network conditions, configuration, processing overhead, packet size, environment, and other factors. Internet service not included with DMS-1016.

1 4

  • Plug and Play

    Easy installation with no manual configuration required

  • 16 Multi-Gigabit Ports

    Up to 2.5GbE* per port

  • Traffic Optimization

    Built in QoS helps prioritize network traffic

  • Fanless Operation

    Helps provide quiet operation

  • Energy-Efficient

    802.3az helps reduce power use during low activity

  • IGMP Snooping

    Helps manage multicast traffic

Multi-Gigabit Connectivity Across All 16 Ports

The D-Link DMS-1016 delivers up to 2.5GbE* on every port while continuing to support existing 1GbE devices through auto-negotiation. Add Multi-Gigabit workstations, gaming PCs, NAS, servers, Wi-Fi access points, surveillance NVRs, 4K/8K media systems, and other higher-bandwidth devices where you need them today without requiring every connected device to be 2.5GbE*.

With up to 80 Gbps* switching capacity, fanless operation, and no manual software configuration required, it provides a flexible upgrade for home, office, studio, and professional wired network environments.

More Bandwidth Where You Need it.

Up to 2.5GbE* per port helps support large file transfers, shared storage, media production, gaming, surveillance, and other bandwidth-intensive applications.

Workstations, NAS, servers, and other Multi-Gig devices can take advantage of higher-speed Ethernet connectivity, while existing Gigabit equipment stays connected.

The D-Link DMS-1016 includes built-in traffic features that help keep your networking running smoothly across connected devices. IEEE 802.1p QoS helps prioritize important traffic, IGMP Snooping helps manage multicast traffic, and IEEE 802.3x Flow Control helps manage congestion. These features work automatically, with no manual software configuration required.

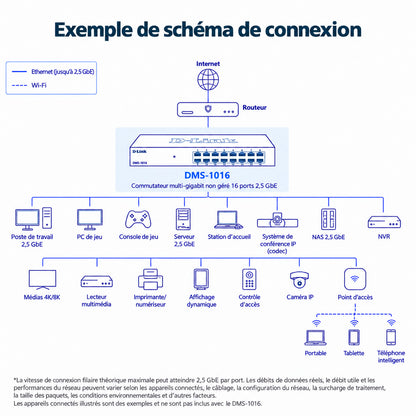

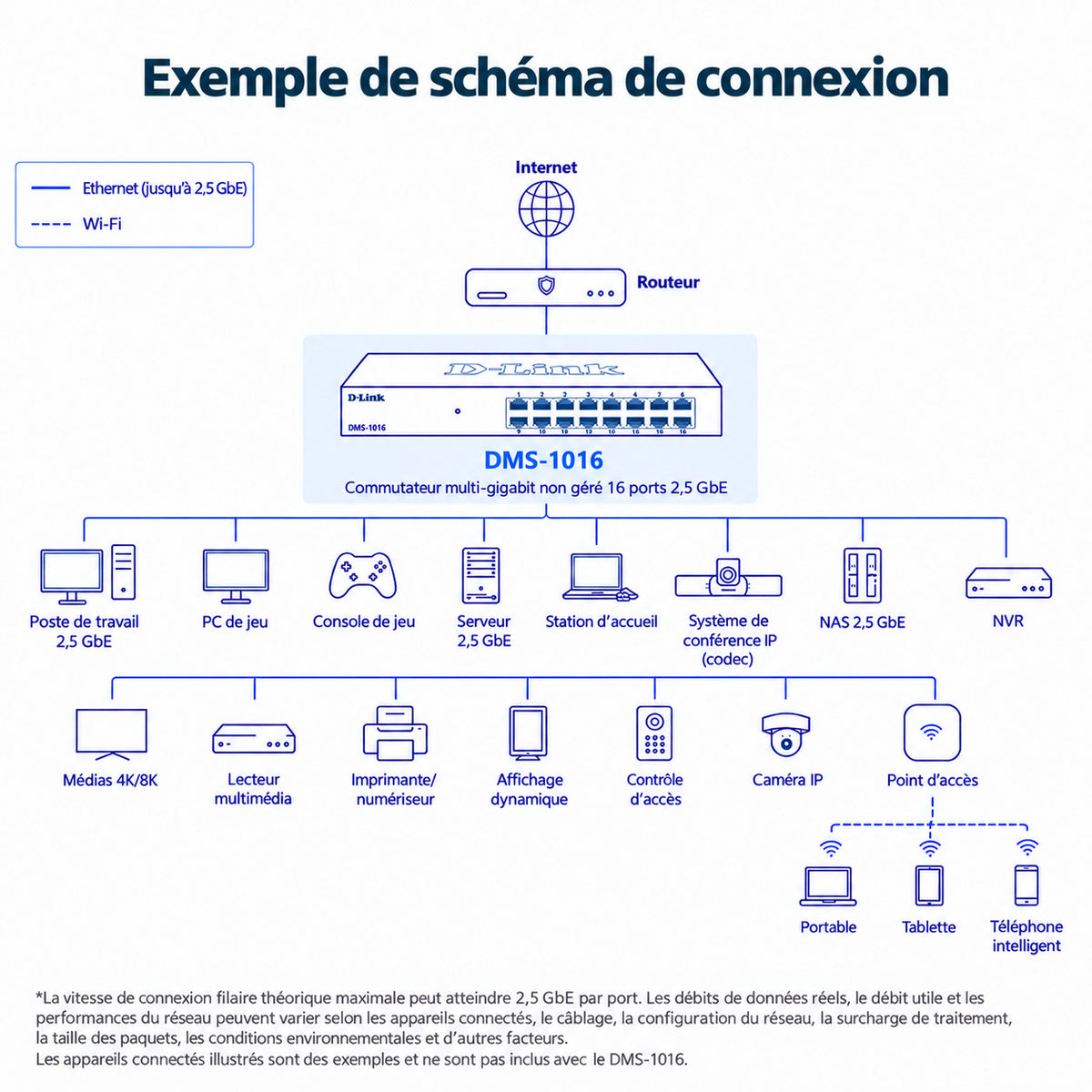

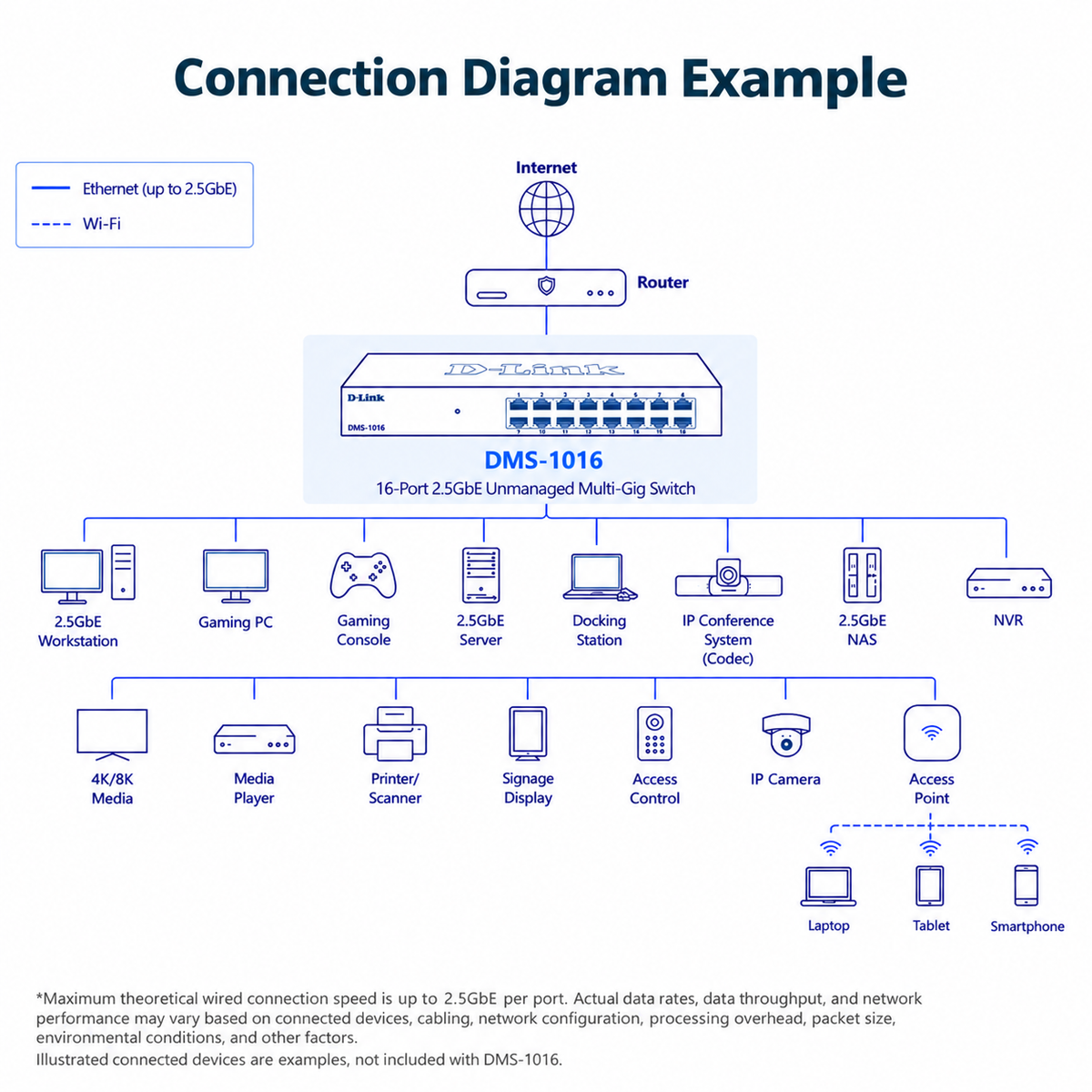

 Connection Diagram Example

The DMS-1016 supports network speeds up to 2.5GbE* per port for wired devices, while an optional DMS-108P can provide up to 2.5GbE* connectivity and PoE for compatible PoE devices.*

DMS-1016 Frequently Asked Questions

Can I connect both 1GbE and 2.5GbE devices to the DMS-1016?

Yes. Each of the 16 Ethernet ports on the DMS-1016 supports 10/100Mbps, 1GbE, and up to 2.5GbE through auto-negotiation. Gigabit devices can connect at up to 1GbE while devices that support 2.5GbE can connect at up to 2.5GbE on the same switch.¹

Do I need to configure the DMS-1016 or install management software?

No. The DMS-1016 is an unmanaged, plug-and-play switch. Simply connect your Ethernet devices. Auto-negotiation and Auto MDI/MDI-X are designed to detect supported connections and help establish supported Ethernet connections without switch software configuration.

Does the DMS-1016 provide Power over Ethernet (PoE)?

No. The DMS-1016 provides Ethernet data connectivity but does not supply PoE power. Devices that require Power over Ethernet, such as PoE cameras, access points, or VoIP phones, require an appropriate PoE switch, PoE injector, or other PoE power source.

Do QoS, IGMP Snooping, and Flow Control work automatically?

Yes. The DMS-1016 includes built-in IEEE 802.1p Quality of Service (QoS), IGMP Snooping, and IEEE 802.3x Flow Control. These features are designed to operate without manual switch software configuration. QoS helps prioritize traffic, IGMP Snooping helps manage multicast traffic, and Flow Control helps manage congestion between connected devices.

What does up to 80 Gbps switching capacity mean?

The DMS-1016 provides up to 80 Gbps of aggregate switching capacity across the switch. This helps accommodate simultaneous traffic from multiple connected devices for activities such as file transfers, gaming, streaming, surveillance, and media workflows. Individual Ethernet ports support up to 2.5GbE.¹

Will my existing Ethernet cables work with the DMS-1016?

Yes, in many cases. You do not need a special Multi-Gig Ethernet cable. Existing Cat5e or better Ethernet cabling can support 2.5GbE connections. To connect at up to 2.5GbE, the device at the other end must also support 2.5GbE.¹

Does the DMS-1016 support Jumbo Frames?

Yes. The DMS-1016 supports Jumbo Frames up to 12,288 bytes. Jumbo Frames allow larger amounts of data to be carried in each Ethernet frame and can be useful for large data transfers involving network storage, servers, workstations, backups, and media workflows.¹

Can I use the DMS-1016 on a desktop, in a rack, or in an AV media cabinet?

Yes. The DMS-1016 features a fanless metal housing and internal power supply and can be placed on a desktop or installed in a standard 19-inch rack. It can also be placed in a compatible AV media cabinet where fit, ventilation, and installation requirements are met.*

*AV media cabinet and third-party installation accessories sold separately. Verify fit, ventilation, and installation requirements.

¹Maximum switching capacity and data rates are based on theoretical hardware specifications operating under ideal conditions. Actual performance may vary based on connected devices, network configuration, processing overhead, packet size and other environmental factors.

Unmanaged Multi-Gigabit Switches

Compare connectivity, PoE, deployment, and performance.

D-Link DMS-1016
DMS-1016
D-Link DMS-108P
DMS-108P
D-Link DMS-108
DMS-108
D-Link DMS-105
DMS-105
2.5GbE Ports 16 × 2.5GbE 8 × 2.5GbE 8 × 2.5GbE 5 × 2.5GbE
PoE Type / Ports — PoE++ (802.3af/at/bt)
Ports 1–8
Up to 90W per port		 — —
Total PoE Budget — 230W — —
Power Supply Internal External External External
Mounting Desktop / Rackmount Desktop Desktop / Wall Desktop / Wall
Fans Fanless Fanless Fanless Fanless
Switching Capacity 80 Gbps 40 Gbps 40 Gbps 25 Gbps
Great For Higher port-count Multi-Gigabit deployments Multi-Gigabit + PoE devices 8-device Multi-Gigabit networks Smaller Multi-Gigabit setups
Compliance Follows NDAA/TAA Follows NDAA/TAA Follows NDAA/TAA Follows NDAA/TAA
Warranty Limited Lifetime Warranty Limited Lifetime Warranty Limited Lifetime Warranty Limited Lifetime Warranty
Learn More View Data Sheet → Learn More View Data Sheet → Learn More View Data Sheet → Learn More View Data Sheet →
