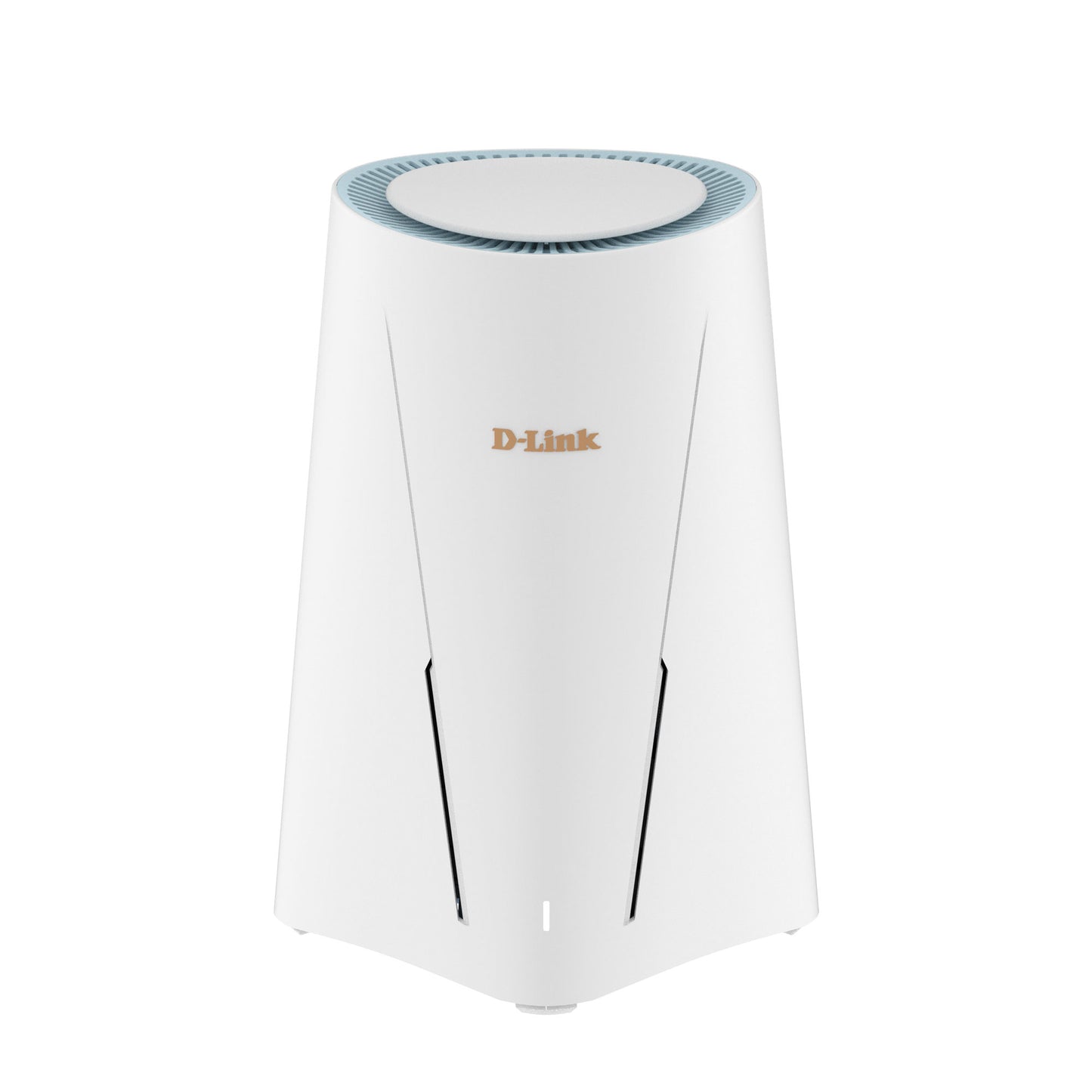

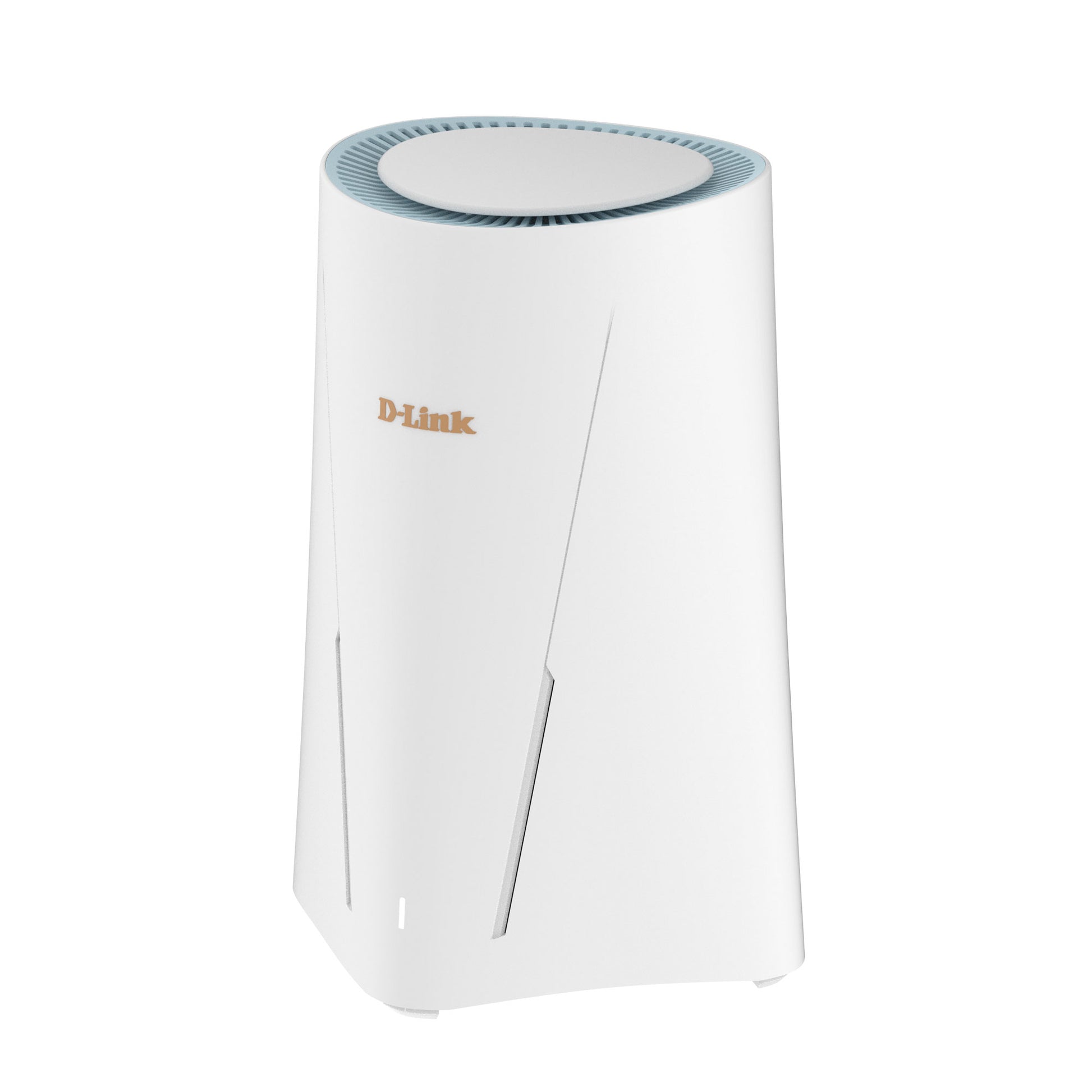

• White D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) on a white background
  • Back view of a White D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560)on a white background
  • White D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) on a white background
1 17

D-Link

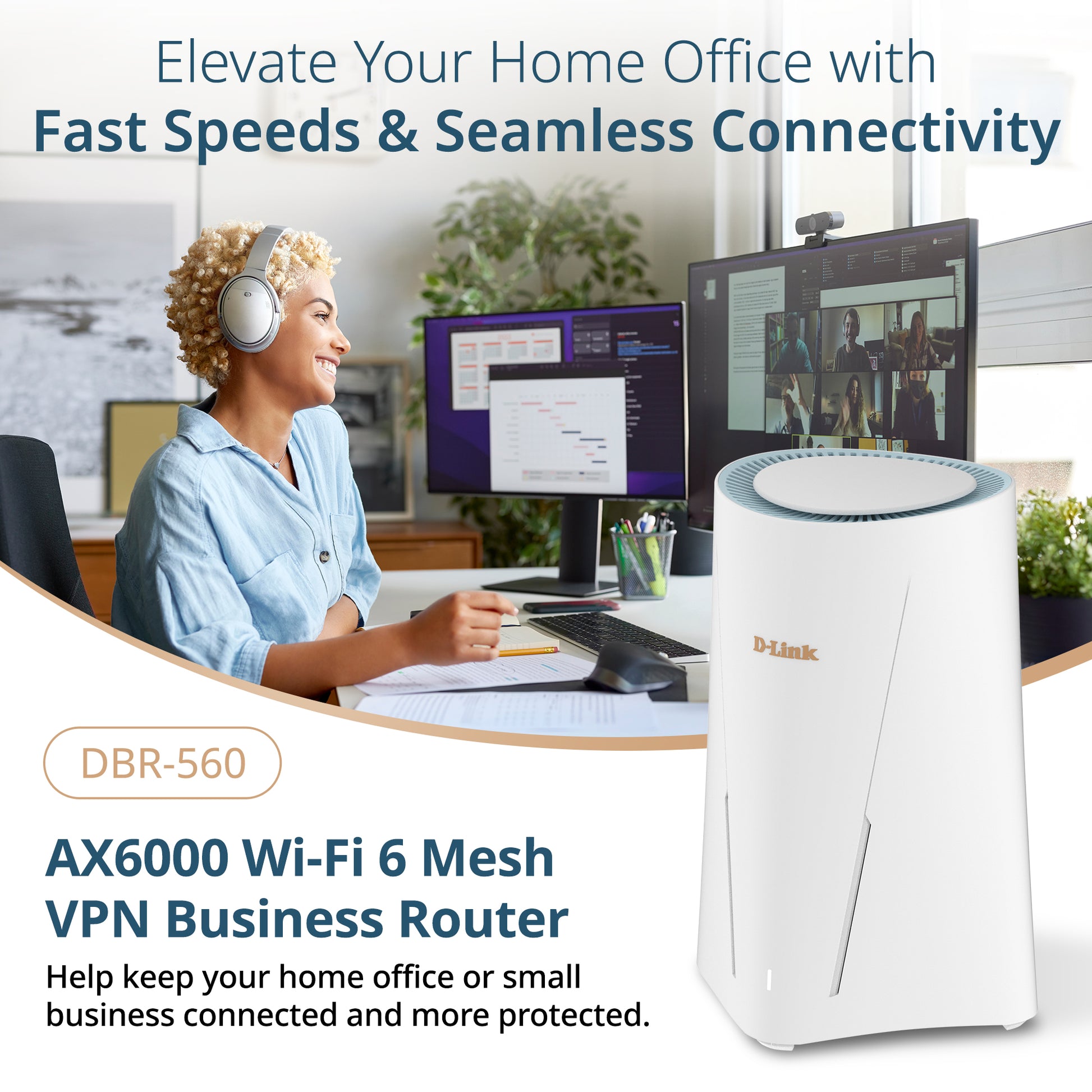

D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560), 2.5 Gbps WAN, Enterprise-Grade Security Features, VPN, SPI Firewall, Mesh Expandable, USB-C File Sharing, Hybrid or Remote Work ready

D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560), 2.5 Gbps WAN, Enterprise-Grade Security Features, VPN, SPI Firewall, Mesh Expandable, USB-C File Sharing, Hybrid or Remote Work ready

$249.99 CAD
$249.99 CAD $249.99 CAD
Sale Sold out
Shipping calculated at checkout.

Information on repairability and maintenance for Quebec consumers - Click Here

Plug it in. Connect your devices. Help keep your home office or small business connected and more protected.

The D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) helps deliver enterprise-grade performance and protection without the typical IT headaches. Designed for home offices and small businesses, it brings high speed, smart security features, and expandable coverage to help keep your world connected.

Whether you’re running a neighborhood shop, launching your next big content channel, or taking over the business world from your basement office, the DBR-560 helps you better connect, protect, and grow - no special subscriptions, no complicated setup, no IT degree required. ****

  • Blazing-Fast AX6000 Wi-Fi 6 Speeds - Experience up to 4804 Mbps on 5 GHz and up to 1148 Mbps on 2.4 GHz* - great for video calls, streaming, hybrid work, or online learning.
  • Enterprise-Grade Security Features & VPN - Help protect your network with WPA3 encryption, SPI firewall, and built-in VPN support for more secure remote access and private browsing.

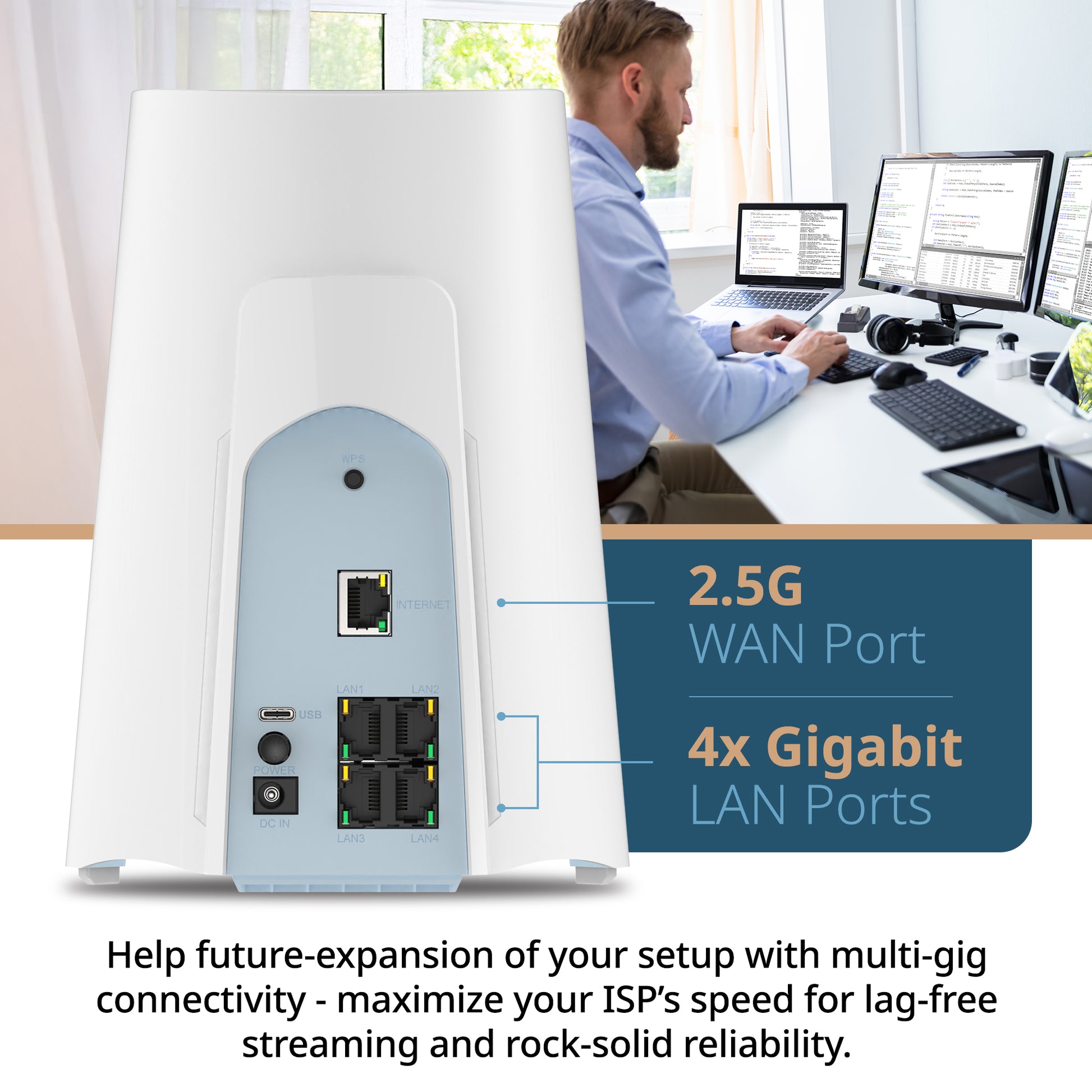

  • 2.5G WAN + 4 Gigabit LAN Ports - Help future-expansion of your setup with multi-gig connectivity - maximize your ISP’s speed for lag-free streaming and rock-solid reliability.

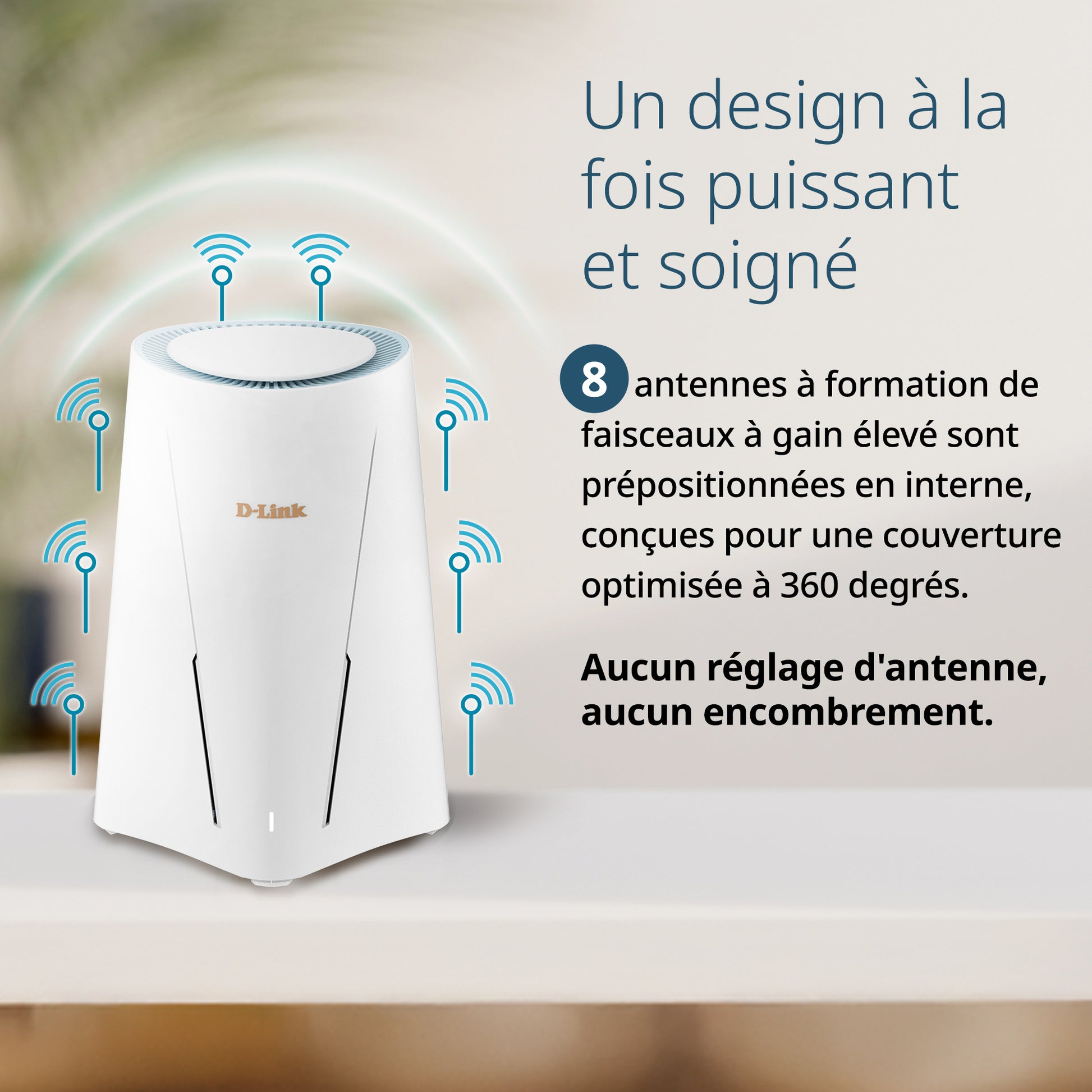

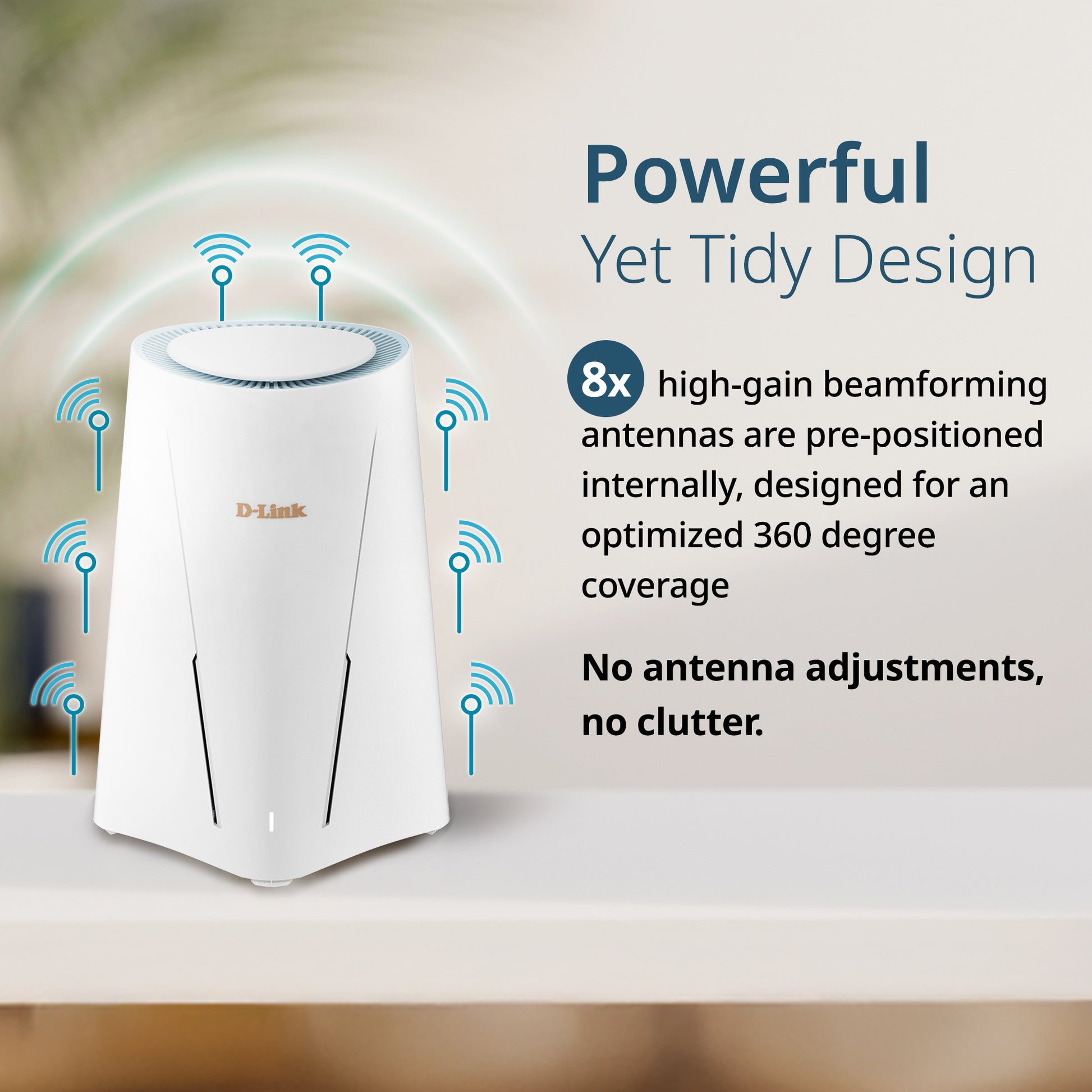

  • Powerful Yet Tidy Design - Eight high-gain beamforming antennas are pre-positioned internally, designed for an optimized 360 degree coverage — no antenna adjustments, no clutter.

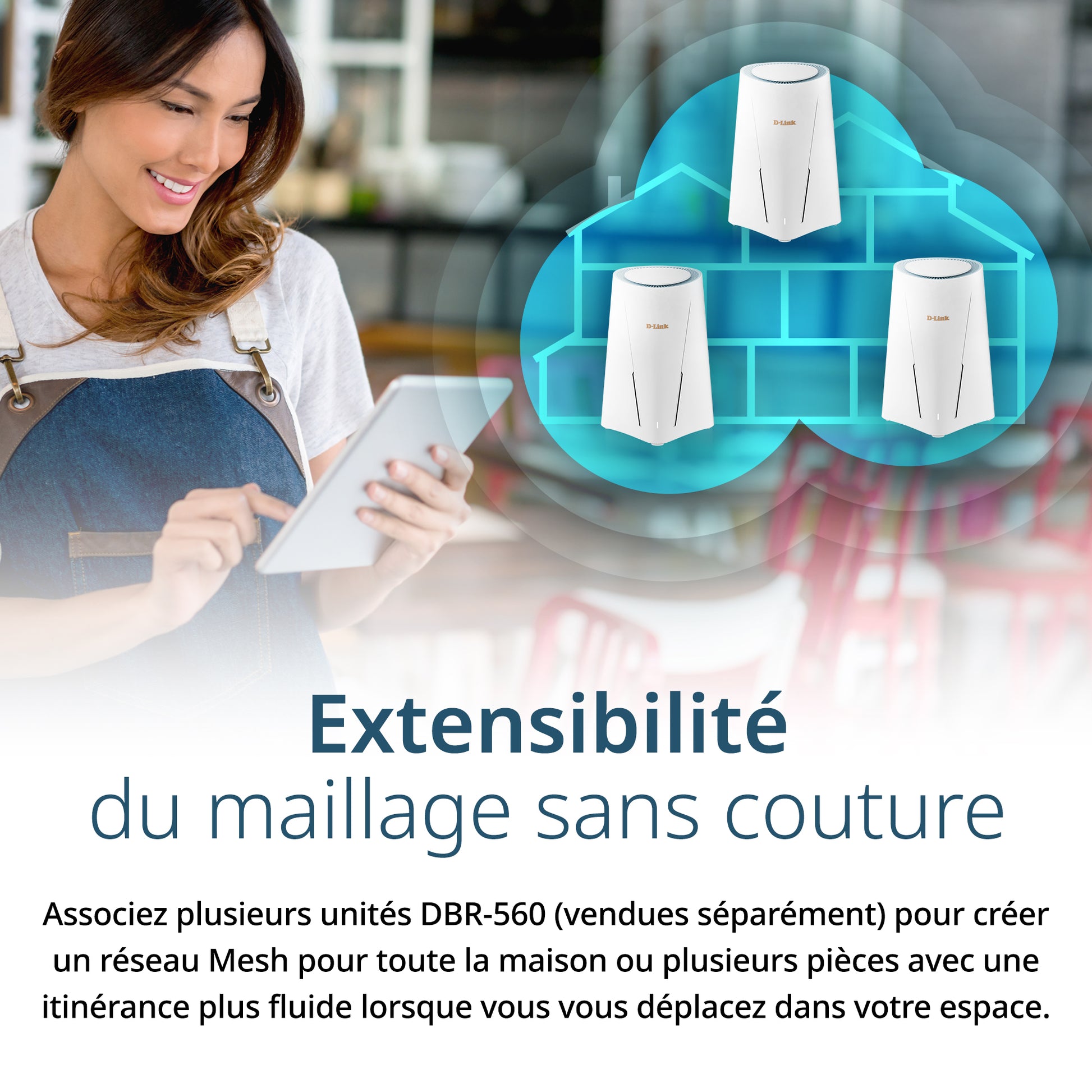

  • Seamless Mesh Expandability - Pair multiple DBR-560 units (sold separately) to build a whole-home or multi-room Mesh network with smoother roaming as you move through your space.
  • Join N’ Share Personal Cloud - Plug in a USB-C drive to create your own more secure private cloud - for file access and sharing (e.g., with your team) on compatible devices for easier collaboration. ***
  • Easy Setup & Management - Control your network with a web-based dashboard — adjust security settings, manage devices, and optimize performance effortlessly.

*The maximum data rates and speeds (e.g., bps) and coverage mentioned are theoretical values and based on IEEE 802.11ax/ac/n/g/b standards. Actual performance of data rates, speed, bandwidth, coverage, and other performance metrics mentioned may vary depending on various factors, including environmental and network conditions, and your ISP service.  ***DBR-560 can share files when used with compatible devices. ****Internet service not included with DBR-560
Disclaimer: As there is no absolute hack-proof network and no fully secure solution, D-Link makes no warranty or guarantee that its products will prevent unauthorized access, hacking, or cyberattacks.

View full details

Work smarter with fast, more seamless connectivity built for today’s home offices and micro/small businesses.

The D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) combines ultra-fast Wi-Fi 6 speeds with expandable, more seamless mesh coverage* and advanced security features such as WPA3 encryption, an SPI firewall, and built-in VPN support for more secure remote access and private browsing.

  • Enhanced Wi-Fi Coverage

    Advanced internal antenna design to deliver 360° spherical coverage, without adding visual clutter, so you can more confidently place your router where it belongs: out in the open.* As your office grows, expandable mesh technology lets you extend coverage more effortlessly.

  • Built-in VPN Technology

    Helps enable more secure remote access for hybrid and work-from-home employees, while also allowing small businesses to more securely connect multiple offices, stores, or branch locations under one more protected network.

  • Join N’ Share More Seamlessly

    Connect a storage device to the DBR-560 and wirelessly access your files through D-Link’s Join N’ Share platform from anywhere you have an Internet connection.†

  • Home Office

  • Content Creators

  • Software Developers

  • Online Educators

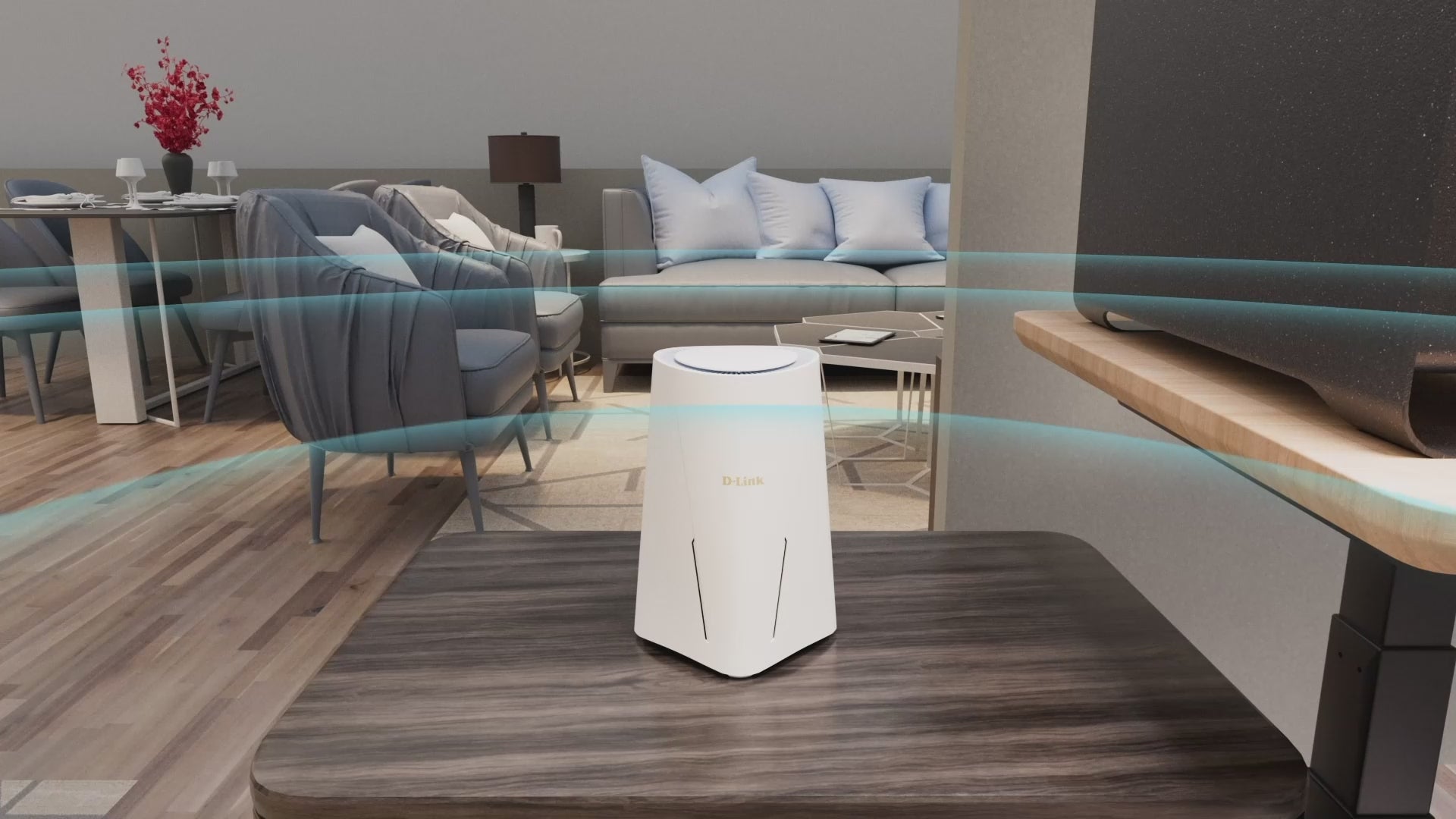

360° Spherical Coverage to Help Reduce Wi-Fi Dead Zones

The D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) uses an advanced internal antenna design engineered to help provide more uniform, 360° spherical coverage - an advantage over many traditional routers that tend to project Wi-Fi in a flatter, donut-shaped pattern. This helps deliver a more consistent signal reach throughout your home or office. And if you need additional coverage, you can expand your network by adding more DBR-560 units (sold separately) to help create a more seamless mesh system.*

Built-In VPN with Enhanced Security

The D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) includes built-in VPN support, WPA3 encryption, and an SPI firewall - security features designed to help provide more secure remote access for hybrid employees and small businesses. Combined with ultra-fast Wi-Fi 6 speeds, the DBR-560 helps support safer connections and more productive work, whether you’re at home or linking multiple locations.

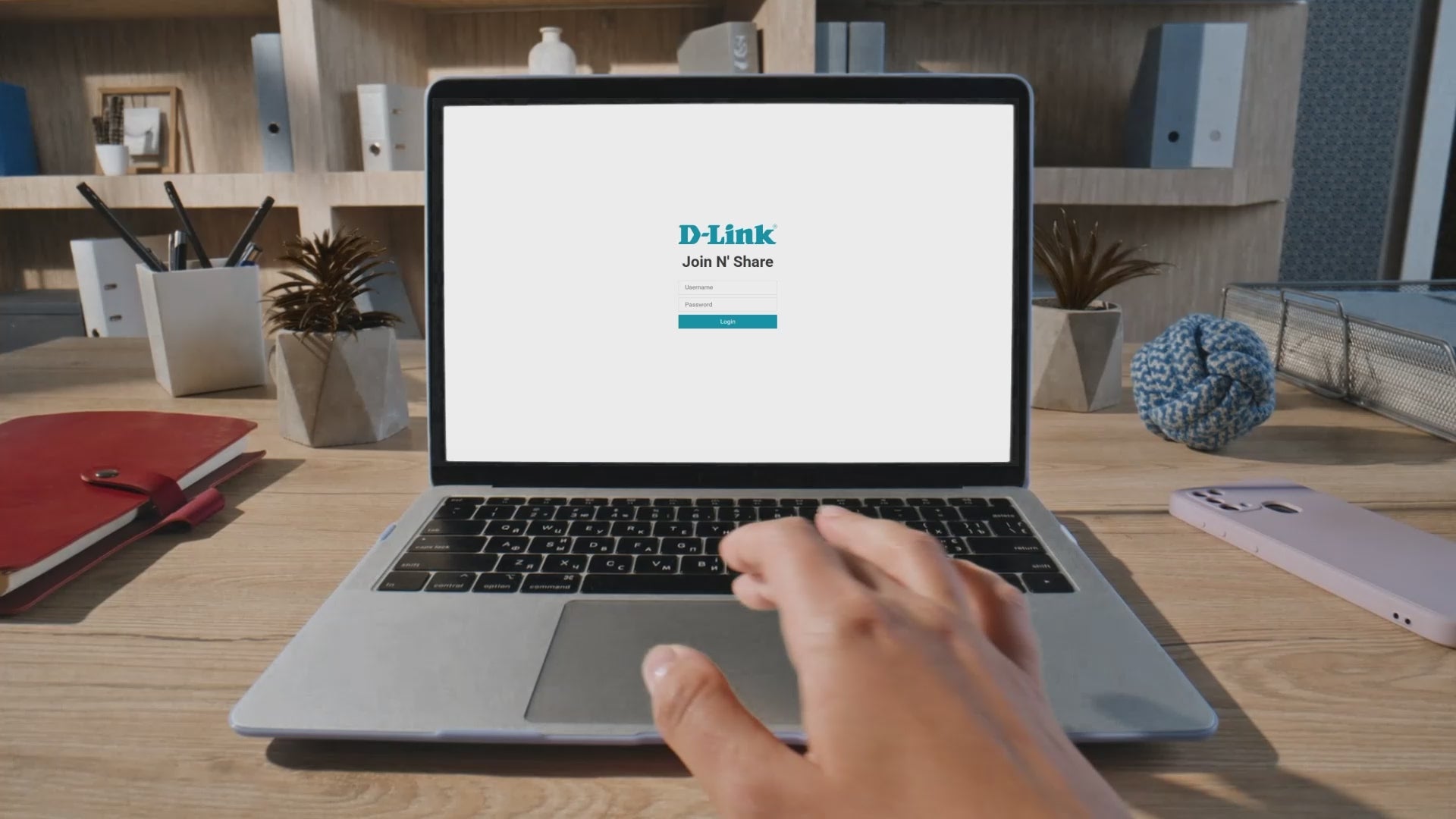

Join N’ Share More Seamlessly

Connect a storage device to the D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) and create your own private cloud, helping you access and share files more securely through a convenient web interface.† The intuitive Join N’ Share platform also helps you easily set up and manage user access permissions, giving you more control over how your files are shared.

Convenient Gigabit Wired Connections

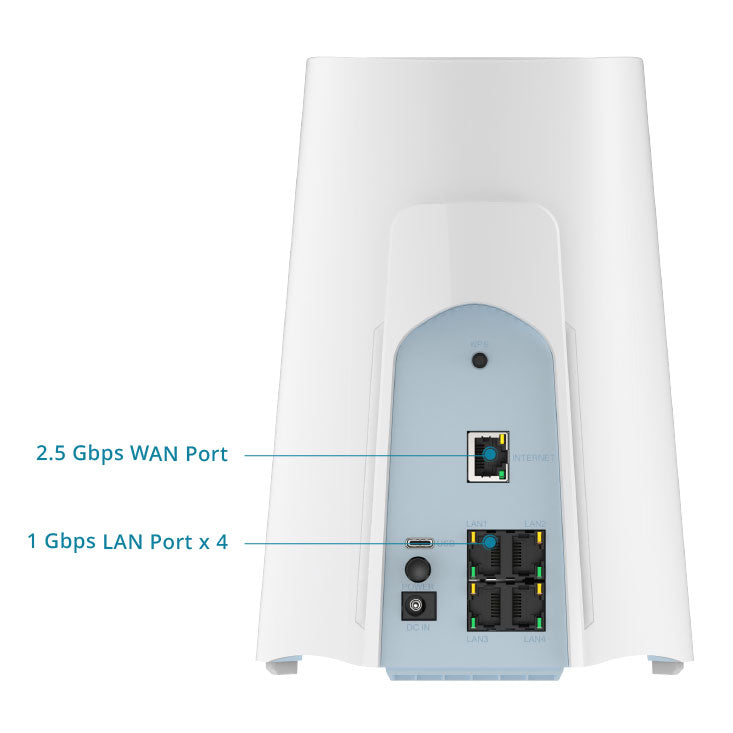

The D-Link AX6000 Wi-Fi 6 Mesh VPN Business Router (DBR-560) includes a 2.5Gbps WAN port designed to help you take full advantage of higher-speed ISP plans, along with four 1Gbps LAN ports for more reliable wired connections to key devices.† This setup can help reduce the need for additional switches in small office or home office environments, supporting smoother VPN and SOHO workflows without extra hardware.

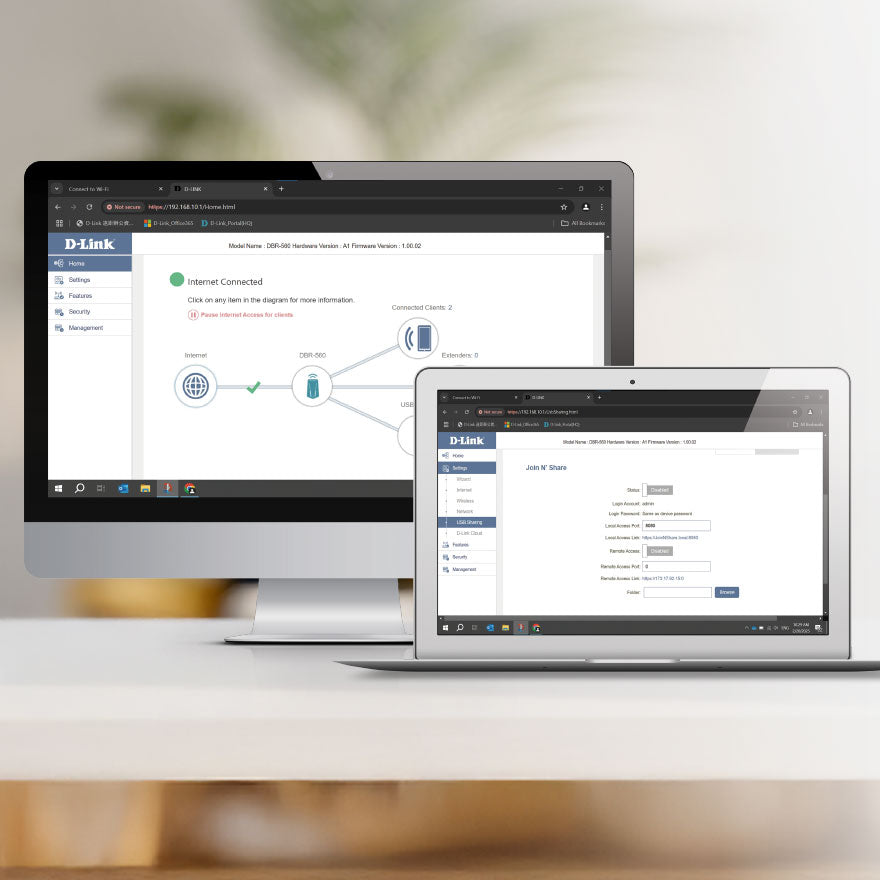

Easy Setup and Management

Set up and manage your network through a user-friendly web interface, with advanced configuration options available if you need them. Customize key settings,
including security preferences, network parameters, performance options, and wireless file-sharing features to help tailor the DBR-560 to your specific home or office needs.

*The maximum data rates and speeds (e.g., bps) and coverage mentioned are theoretical values and based on IEEE 802.11ax standards. Actual performance of data rates, speed, bandwidth, coverage, and other performance metrics mentioned may vary depending on various factors, including environmental and network conditions, and your ISP service.

† Internet service not included with DBR-560.

Disclaimer: As there is no absolute hack-proof network and no fully secure solution, D-Link makes no warranty or guarantee that its products will prevent unauthorized access, hacking, or cyberattacks.

Technical Specifications

GENERAL

Device Interfaces

  • 1 x 2.5 Gigabit Ethernet WAN Port
  • 4 x Gigabit Ethernet LAN Port
  • 1 x Power connector
  • 1 x WPS button
  • 1 x Power button

LEDs
Wi-Fi Status, Internet Status

IEEE Standards*

  • 5 GHz: IEEE 802.11ax/ac/n/a
  • 2.4 GHz: IEEE 802.11ax/n/g/b
  • IEEE 802.u/ab/bz

Wi-Fi Data Rates*
6000 Mbps (5 GHz up to 4804 Mbps / 2.4 GHz up to 1148 Mbps)

Internet Connectivity
Ethernet WAN

Antenna Type

  • 4x Wi-Fi 2.4 GHz internal antennas
  • 4x Wi-Fi 5 GHz internal antennas

FUNCTIONALITY

Security Protocol

  • WPA/WPA2/WPA3-Personal
  • WPA/WPA2/WPA3-Enterprise

File Sharing
Join N' Share (Web-based file sharing function)

Firewall
Stateful Packet Inspection, virtual server, IP Address/domain Filtering, 1 x DMZ

SOFTWARE

Device Management
Web UI

PHYSICAL

Dimensions
137 x 146 x 205 mm (5.39 x 5.75 x 8.07 in)

Weight
660 g (23.32 oz)

Power Input
12 V / 4 A

Operating Temperature
-10 to 40 °C (14 to 104 °F)

Storage Temperature
-20 to 65 °C (-4 to 149 °F)

Operating Humidity
10% to 95% non-condensing

Storage Humidity
5% to 95% non-condensing

Certifications
CE

Package Contents

  • AX6000 Wi-Fi SOHO Router
  • 12V/4A Power Adapter
  • RJ45 Ethernet Cable (1 M)

*Maximum wireless signal rate and speed derived from IEEE standard 802.11ax/ac/n/g/b specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, ISP Service, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. † Internet service not included with DBR-560.
The DBR-560 can share files when used with compatible devices.

For support requests and to download assets like Datasheets, Manuals, and Warranty, etc., please visit: support.dlink.com
