D-Link

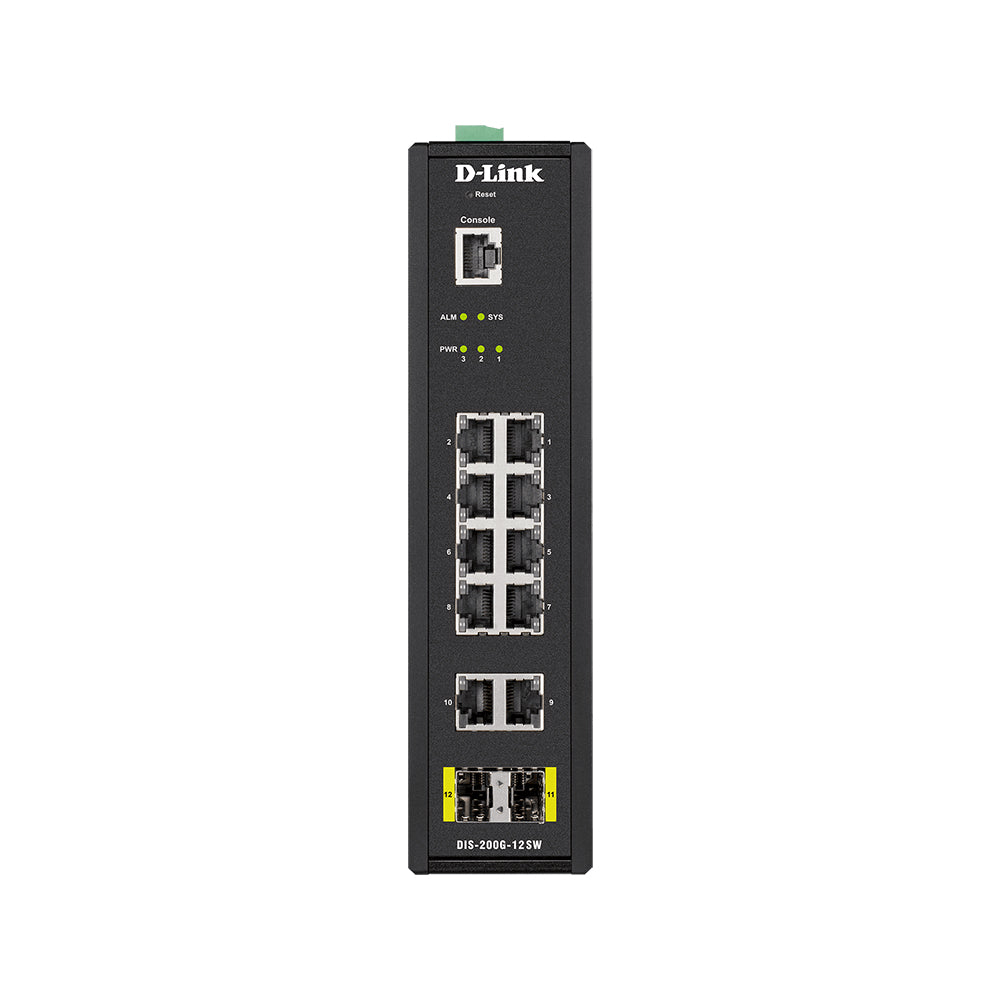

12-Port Gigabit Smart Managed Hardened Industrial Switch - Wide Temp - DIS-200G-12SW

12-Port Gigabit Smart Managed Hardened Industrial Switch - Wide Temp - DIS-200G-12SW

Aucun avis

Prix habituel $1,038.99 CAD
Prix habituel $1,038.99 CAD Prix promotionnel $1,038.99 CAD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

Ideal for industrial and outdoor cabinet surveillance deployments, and capable of withstanding the harshest environments.

  • 8 x 10/100/1000BASE-T PoE ports
  • 2 x 10/100/1000BASE-T ports
  • 2 x SFP ports
  • 1 x RJ-45 Console port
  • Wide operating temperature: -40 to 75 °C (-40 to 167 °F)
  • Robust industry-standard enclosure
  • ERPS for quick failover recovery
  • High EMC endurance
  • Built-in 6 kV surge protection

    For more information on our business-class solutions or for deal pricing, please reach out to our commercial team at: dlinkforbusiness@dlink.ca


    Durable and Reliable Design

    The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference.


    High Redundancy and Reliability

    The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.

    Surveillance Traffic Optimization

    The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network.

    Easy Troubleshooting

    The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port.

    Limited Lifetime Warranty

    D-Link offers a Limited Lifetime Warranty on the DIS-200G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.

    Specifications

    Switching Capacity 24 Gbps
    Max. Packet Forwarding Rate 17.856 Mpps
    Power Input 12~48Vdc, redundant dual inputs throught ternimal block/12Vdc through 4-pin power din
    CPU Speed 416MHz
    DRAM Size 128 MB
    Flash Memory Size 32 MB
    Packet Buffer Size 4Mbit
    Comply with RoHS 6 Yes
    Energy Efficiency Ethernet (EEE) Yes
    Power Saving By Link Status Yes
    Power Saving By LED Shut-Off Yes
    Power Saving By System Hibernation Yes
    Power Saving By Port Shut-Off Yes
    MAC Address Table Size 8K
    802.3x Flow Control Yes
    Head-of-line (HOL) Blocking Prevention Yes
    802.1AX Link Aggregation Yes
    802.3ad Link Aggregation Yes
    Link Aggregation Group Per Device 6
    Max Port Per Link Aggregation Group 8
    Port Mirroring Yes
    Jumbo Frame 9600 bytes
    Loopback Detection (LBD) Yes
    Class of Service (CoS) Yes
    Console Port Yes
    1000Base-T Interface 10
    1000M SFP Interface 2
    Auto MDI/MDIX Yes
    Store & Forwarding Yes
    Standby Power Consumption 5.94W
    Maximum Heat Dissipation 35.01 BTU/hr
    MTBF 219,314 hours
    Dimension 210 x 171.2 x 53mm
    Weight 1.63kg (3.59lbs)
    Operation Temperature -40 ~ 75℃
    Storage Temperature -40 ~ 85℃
    Operation Humidity 0% ~ 95% RH
    Storage Humidity 0% ~ 95% RH
    Operating Altitude up to 2000M
    Maximum Power Consumption 10.26W
    802.1D Spanning Tree (STP) Yes
    802.1w Rapid Spanning Tree (RSTP) Yes
    802.1s Multiple Spanning Tree (MSTP) Yes
    Surveillance VLAN Yes
    802.1Q VLAN Yes
    VLAN Groups Yes
    Port-based VLAN Yes
    Voice VLAN Yes
    Auto Surveillance VLAN Yes (v2.0)
    GVRP Yes
    Asymmetric VLAN Yes
    Number of Queue 4
    Strict Priority Queue (SPQ) Yes
    Queue Handling Yes
    Weighted Round Robin (WRR) Yes
    Cable Diagnostics Yes
    Optical Transceiver Digital Diagnostic Monitoring (DDM) Yes
    Simple Network Time Protocol (SNTP) Yes
    Web-based GUI Yes
    Command Line Interface (CLI) Yes
    Telnet Server Yes
    SNMP Yes
    SNMP Trap Yes
    TFTP Client Yes
    System Log Yes
    RMONv1 Yes
    LLDP Yes
    D-Link Discover Protocol (DDP) Yes
    DHCP/BootP Client DHCP Client only
    Dual Images Yes
    Dual Configurations Yes
    Ping Yes
    D-Link Network Assistant Yes
    G.8032 ERPS Yes
    MLD Snooping Fast Leave Yes
    IGMP Snooping Yes
    MLD Snooping Yes
    MLD Snooping Groups Yes
    Max IGMP Snooping Groups 256 (shared with MLD snooping)
    IGMP Snooping Fast Leave Yes
    Port-based Bandwidth Control Yes
    Port Security Yes
    Broadcast/Multicast/Unicast Storm Control Yes
    Traffic Segmentation Yes
    D-Link Safeguard Engine Yes
    DoS Attack Prevention Yes
    Web-based Access Control (WAC) Yes
    RADIUS Yes
    Surge/Lightning Protection Yes
    Surge/Lightning Protection (AC Power Inet) 2KV
    Surge/Lightning Protection (All Ethernet Ports) 6KV
    Air Discharge 8KV
    Contact Discharge 6KV
